ACKOJA
A3280007

第三方数据ACKOJA : A3280007

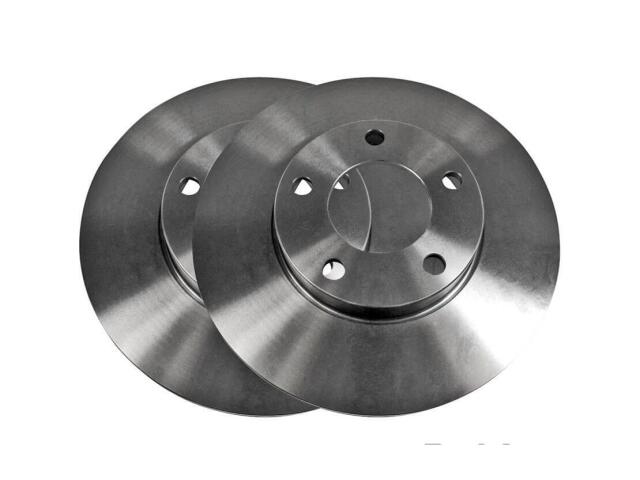

Rotor
ACKOJA : A3280007

Bolt Hole Circle Diameter [mm]: 114,3
Bore Diameter [mm]: 14
Brake Disc Thickness [mm]: 25
Brake Disc Type: Vented
Centering Diameter [mm]: 72
Diameter [mm]: 278
Fulfils ECE norm: R90
Height [mm]: 50
Inner Diameter [mm]: 140
Length [mm]: 279
Minimum Thickness [mm]: 23
Number of Holes: 5
Weight [kg]: 7.132
Width [mm]: 274

适用车型

MAZDA (1)

3 (1)

2.0L L4 (9)

2005	Fits Front Leftor Front Right BP4Y3325XA, BP4Y3325XB, BP4Y3325XC, BP4Y3325XD, C24Y3325XB, C24Y3325XC, C24Y3325XC9A, C24Y3325XD, C24Y3325XE

2006	Fits Front Left; Silveror Front Right; Silveror Front; SILVER BP4Y3325XA, BP4Y3325XB, BP4Y3325XC, BP4Y3325XD, C24Y3325XB, C24Y3325XC, C24Y3325XC9A, C24Y3325XD, C24Y3325XE

2007	Fits Front Left; From 06/11/2006; Blackor Front Right; From 06/11/2006; Blackor Front; From 06/11/2006; Blackor Front; Silver; To 06/11/2006 BP4Y3325XA, BP4Y3325XB, BP4Y3325XC, BP4Y3325XD, C24Y3325XB, C24Y3325XC, C24Y3325XC9A, C24Y3325XD, C24Y3325XE

2008	Fits Front Left; Blackor Front Right; Blackor Front; Black BP4Y3325XA, BP4Y3325XB, BP4Y3325XC, BP4Y3325XD, C24Y3325XB, C24Y3325XC, C24Y3325XC9A, C24Y3325XD, C24Y3325XE

2009	Fits Front Left; To 12/16/2008; Blackor Front Right; To 12/16/2008; Blackor Front; To 12/16/2008; Black BP4Y3325XA, BP4Y3325XB, BP4Y3325XC, BP4Y3325XD, C24Y3325XB, C24Y3325XC, C24Y3325XC9A, C24Y3325XD, C24Y3325XE

2010	Fits Front Leftor Front Right BP4Y3325XA, BP4Y3325XB, BP4Y3325XC, BP4Y3325XD, C24Y3325XB, C24Y3325XC, C24Y3325XC9A, C24Y3325XD, C24Y3325XE

2011	Fits Front; 3 Sportor Front; 3 Base Model; To 01/01/2011or Front Left; 3 Base Model; To 01/01/2011or Front Right; 3 Base Model; To 01/01/2011 BP4Y3325XA, BP4Y3325XB, BP4Y3325XC, BP4Y3325XD, C24Y3325XB, C24Y3325XC, C24Y3325XC9A, C24Y3325XD, C24Y3325XE

2012	Fits Front Leftor Front Right BP4Y3325XA, BP4Y3325XB, BP4Y3325XC, BP4Y3325XD, C24Y3325XB, C24Y3325XC, C24Y3325XC9A, C24Y3325XD, C24Y3325XE

2013	Fits Front Leftor Front Right BP4Y3325XA, BP4Y3325XB, BP4Y3325XC, BP4Y3325XD, C24Y3325XB, C24Y3325XC, C24Y3325XC9A, C24Y3325XD, C24Y3325XE

OE号码

品牌	号码
OE	A32-8000*
OE	BP4Y3325X*
OE	BP4Y3325X*
OE	BP4Y3325X*

品牌	号码
OE	BP4Y3325X*
OE	C24Y3325X*
OE	C24Y3325X*

品牌	号码
OE	C24Y3325XC9*
OE	C24Y3325X*
OE	C24Y3325X*
