ASTRA
18A972SD

第三方数据ASTRA : 18A972SD

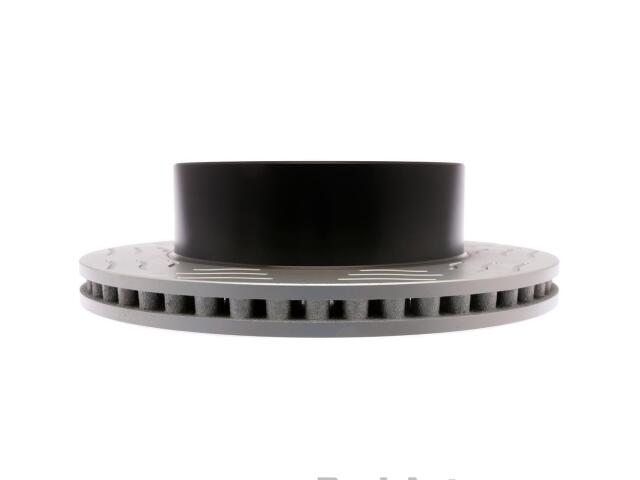

Rotor
ASTRA : 18A972SD

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 72.1mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 0.89
Discard Thickness (MM): 22.6
Hat Finish: Turned
Height (IN): 3.1
Height (MM): 77.7
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Nominal Thickness (IN): 0.96
Nominal Thickness (MM): 24.4
Outside Diameter (IN): 11
Outside Diameter (MM): 280.2
Overall Rotor Diameter (mm): 280.16mm
Pad Contact Surface Width (IN): 2
Pad Contact Surface Width (MM): 49.7
Rust Resistant Coating: Yes
Slotted: Yes
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

JEEP (1)

OE号码

品牌	号码
OE	8887522*
