ASTRA
18A972

第三方数据ASTRA : 18A972

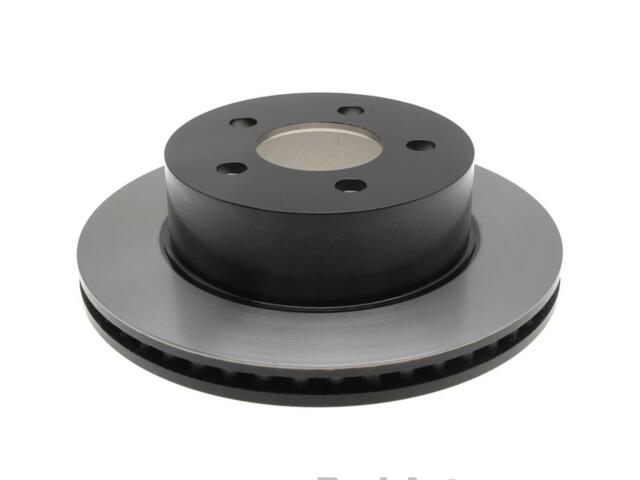

Rotor
ASTRA : 18A972

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 72.1mm
Center Hole Diameter (IN): 2.84
Center Hole Diameter (MM): 72.15
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.894
Discard Thickness (MM): 22.7
Hat Finish: Turned
Height (IN): 3.1
Height (MM): 77.7
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.636
Mounting Bolt Hole Diameter (MM): 16.15
Nominal Thickness (IN): 0.955
Nominal Thickness (MM): 24.25
Outside Diameter (IN): 11.03
Outside Diameter (MM): 280.15
Overall Height (IN): 3.06
Overall Height (MM): 77.7
Overall Rotor Diameter (mm): 280.16mm
Pad Contact Surface Width (IN): 2
Pad Contact Surface Width (MM): 49.7
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

JEEP (1)

OE号码

品牌	号码
OE	1917513*
