ASTRA
18A971

第三方数据ASTRA : 18A971

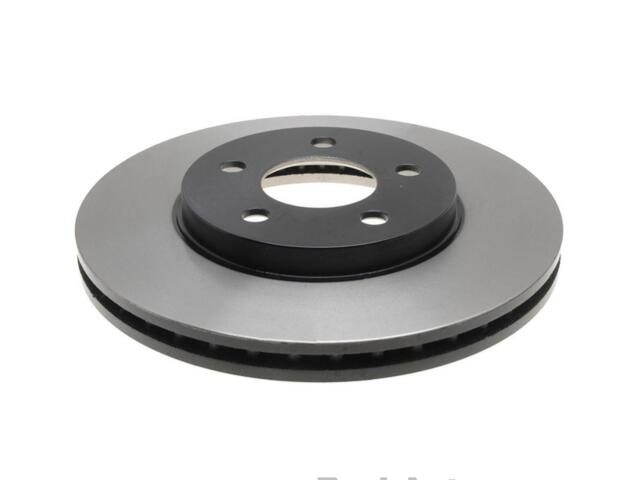

Rotor
ASTRA : 18A971

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.9
Bolt Circle Diameter (MM): 100
Center Bore Diameter (IN): 2.4in
Center Bore Diameter (MM): 61mm
Center Hole Diameter (IN): 2.41
Center Hole Diameter (MM): 61.2
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.803
Discard Thickness (MM): 20.4
Hat Finish: Turned
Height (IN): 1.5
Height (MM): 38.1
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.93
Mounting Bolt Hole Circle Diameter (MM): 99.8
Mounting Bolt Hole Diameter (IN): 0.546
Mounting Bolt Hole Diameter (MM): 13.85
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22
Outside Diameter (IN): 10.115
Outside Diameter (MM): 256.9
Overall Height (IN): 1.5
Overall Height (MM): 38.1
Overall Rotor Diameter (mm): 256.79mm
Pad Contact Surface Width (IN): 2.1
Pad Contact Surface Width (MM): 54.4
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

DODGE (2)

OE号码

品牌	号码
OE	1917513*
