ASTRA
18A949

第三方数据ASTRA : 18A949

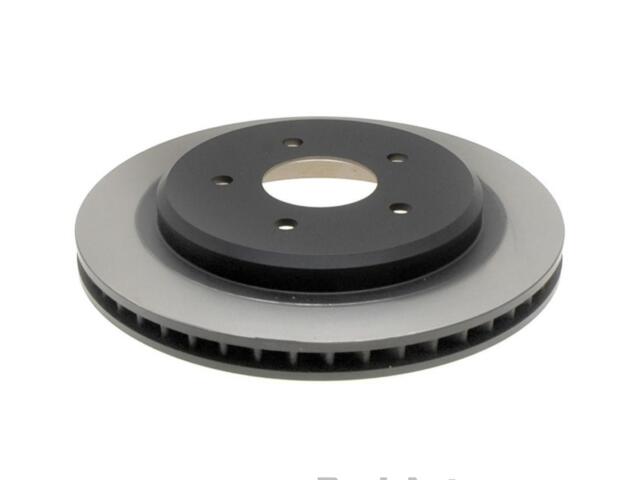

Rotor
ASTRA : 18A949

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.8
Bolt Circle Diameter (MM): 120.7
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 70.7mm
Center Hole Diameter (IN): 2.782
Center Hole Diameter (MM): 70.65
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Ground
Discard Thickness (IN): 0.964
Discard Thickness (MM): 24.5
Hat Finish: Turned
Height (IN): 1.9
Height (MM): 48.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.75
Mounting Bolt Hole Circle Diameter (MM): 120.65
Mounting Bolt Hole Diameter (IN): 4.75
Mounting Bolt Hole Diameter (MM): 120.65
Nominal Thickness (IN): 1.025
Nominal Thickness (MM): 26.05
Outside Diameter (IN): 12
Outside Diameter (MM): 304.8
Overall Height (IN): 1.905
Overall Height (MM): 48.4
Overall Rotor Diameter (mm): 304.8mm
Pad Contact Surface Width (IN): 1.5
Pad Contact Surface Width (MM): 37.85
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

CADILLAC (1)

CHEVROLET (1)

OE号码

品牌	号码
OE	1917511*
