ASTRA
18A875

第三方数据ASTRA : 18A875

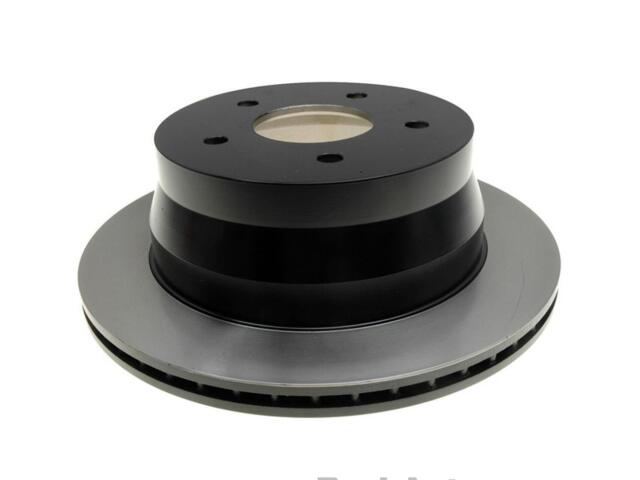

Rotor
ASTRA : 18A875

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.8
Bolt Circle Diameter (MM): 120.7
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 70.7mm
Center Hole Diameter (IN): 2.78
Center Hole Diameter (MM): 70.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.728
Discard Thickness (MM): 18.5
Hat Finish: Turned
Height (IN): 3.7
Height (MM): 95.1
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.75
Mounting Bolt Hole Circle Diameter (MM): 120.65
Mounting Bolt Hole Diameter (IN): 0.511
Mounting Bolt Hole Diameter (MM): 13
Nominal Thickness (IN): 0.785
Nominal Thickness (MM): 19.95
Outside Diameter (IN): 11.61
Outside Diameter (MM): 294.9
Overall Height (IN): 3.745
Overall Height (MM): 95.1
Overall Rotor Diameter (mm): 294.89mm
Pad Contact Surface Width (IN): 1.6
Pad Contact Surface Width (MM): 40.4
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	1917507*
