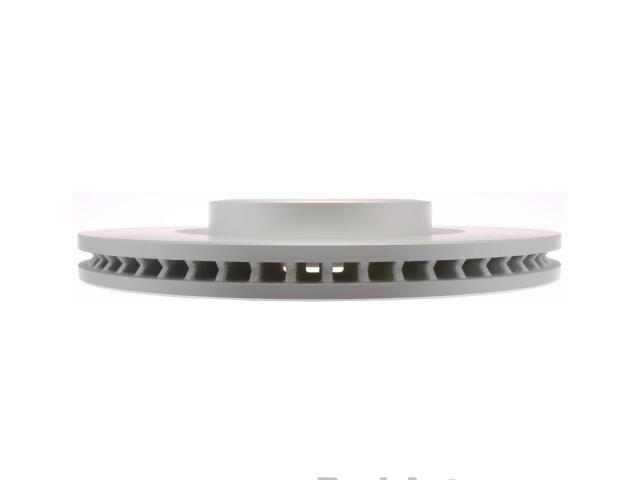

Rotor
ASTRA : 18A82616

Abs Tone Ring Included: No
Bearings Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Hole Diameter (IN): 2.799
Center Hole Diameter (MM): 71.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Coated
Discard Thickness (IN): 1.201
Discard Thickness (MM): 30.5
Height (IN): 2.23
Height (MM): 56.7
Inside Diameter (IN): 8.969
Inside Diameter (MM): 227.8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.624
Mounting Bolt Hole Diameter (MM): 15.85
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32
Outside Diameter (IN): 14.299
Outside Diameter (MM): 363.2
Overall Height (IN): 2.232
Overall Height (MM): 56.7
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

FORD (2)

EXPLORER (3)

POLICE INTERCEPTOR UTILITY (3)

LINCOLN (1)

OE号码

品牌	号码
OE	1942509*
