ASTRA
18A82614PV

第三方数据ASTRA : 18A82614PV

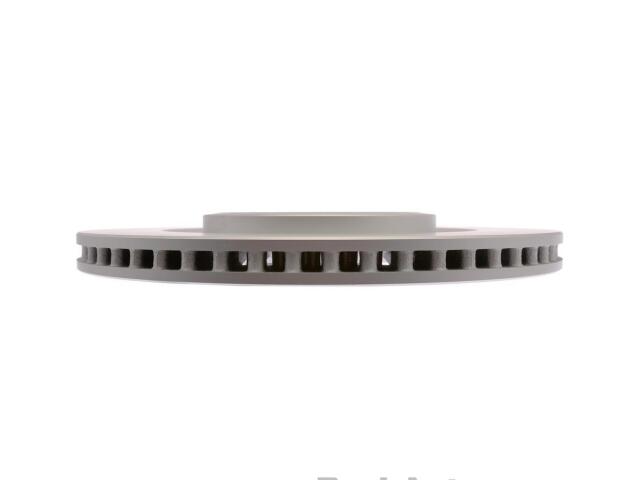

Rotor
ASTRA : 18A82614PV

Abs Tone Ring Included: No
Bearings Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Hole Diameter (IN): 2.799
Center Hole Diameter (MM): 71.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Plain
Discard Thickness (IN): 0.965
Discard Thickness (MM): 24.5
Height (IN): 1.54
Height (MM): 39.2
Inside Diameter (IN): 9.319
Inside Diameter (MM): 236.7
Length (IN): 14.72
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.75
Nominal Thickness (IN): 1.024
Nominal Thickness (MM): 26
Outside Diameter (IN): 13.78
Outside Diameter (MM): 350
Overall Height (IN): 1.543
Overall Height (MM): 39.2
Solid Or Vented Type Rotor: Vented
Weight (lb): 20.7
Width (IN): 14.72

适用车型

FORD (2)

EXPLORER (3)

POLICE INTERCEPTOR UTILITY (3)

LINCOLN (1)

OE号码

品牌	号码
OE	1942510*
