ASTRA
18A82573

第三方数据ASTRA : 18A82573

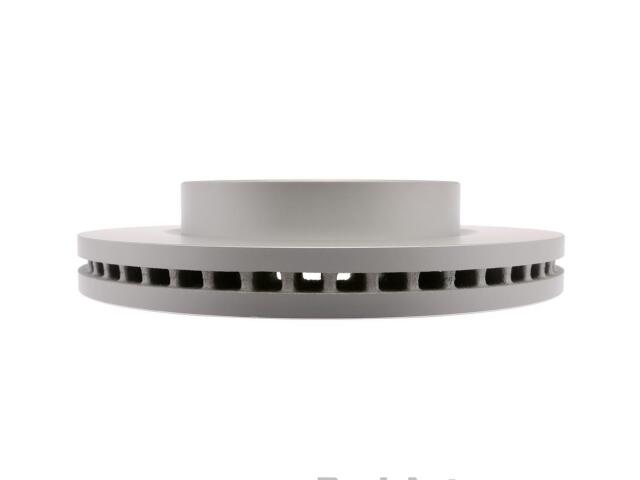

Rotor
ASTRA : 18A82573

Abs Tone Ring Included: No
Bearings Included: No
Bolt Circle Diameter (IN): 5.5
Bolt Circle Diameter (MM): 139.7
Center Hole Diameter (IN): 3.86
Center Hole Diameter (MM): 98.05
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Coated
Discard Thickness (IN): 1.26
Discard Thickness (MM): 32
Height (IN): 2.6
Height (MM): 66
Inside Diameter (IN): 8.169
Inside Diameter (MM): 207.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Mounting Bolt Hole Diameter (IN): 0.524
Mounting Bolt Hole Diameter (MM): 13.3
Nominal Thickness (IN): 1.339
Nominal Thickness (MM): 34
Outside Diameter (IN): 12.244
Outside Diameter (MM): 311
Overall Height (IN): 2.598
Overall Height (MM): 66
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

FORD (2)

RANGER (6)

2.0L L4 DIESEL Turbocharged (2)

2.2L L4 DIESEL Turbocharged (2)

2.3L L4 Turbocharged (5)

2.5L L4 (4)

3.0L V6 Turbocharged (1)

3.2L L5 DIESEL Turbocharged (4)

BRONCO (2)

OE号码

品牌	号码
OE	1942508*
