ASTRA
18A82566

第三方数据ASTRA : 18A82566

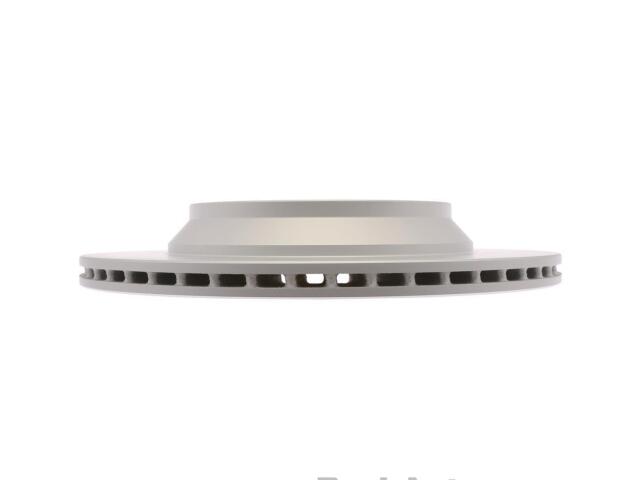

Rotor
ASTRA : 18A82566

Abs Tone Ring Included: No
Bearings Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Hole Diameter (IN): 2.285
Center Hole Diameter (MM): 58.05
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Coated
Discard Thickness (IN): 0.591
Discard Thickness (MM): 15
Height (IN): 1.83
Height (MM): 46.4
Inside Diameter (IN): 7.504
Inside Diameter (MM): 190.6
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.512
Mounting Bolt Hole Diameter (MM): 13
Nominal Thickness (IN): 0.669
Nominal Thickness (MM): 17
Outside Diameter (IN): 11.213
Outside Diameter (MM): 284.8
Overall Height (IN): 1.827
Overall Height (MM): 46.4
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

SUBARU (2)

OE号码

品牌	号码
OE	1942548*
