ASTRA
18A82530

第三方数据ASTRA : 18A82530

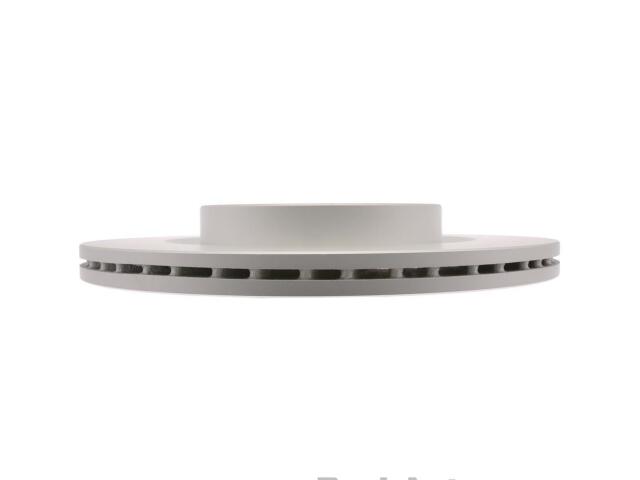

Rotor
ASTRA : 18A82530

Abs Tone Ring Included: No
Bearings Included: No
Bolt Circle Diameter (IN): 4.72
Bolt Circle Diameter (MM): 120
Center Hole Diameter (IN): 2.657
Center Hole Diameter (MM): 67.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Coated
Discard Thickness (IN): 0.827
Discard Thickness (MM): 21
Height (IN): 1.89
Height (MM): 48
Inside Diameter (IN): 9.02
Inside Diameter (MM): 229
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.622
Mounting Bolt Hole Diameter (MM): 15.8
Nominal Thickness (IN): 0.913
Nominal Thickness (MM): 23.2
Outside Diameter (IN): 13.346
Outside Diameter (MM): 339
Overall Height (IN): 1.902
Overall Height (MM): 48.3
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	1942508*
