ASTRA
18A82513

第三方数据ASTRA : 18A82513

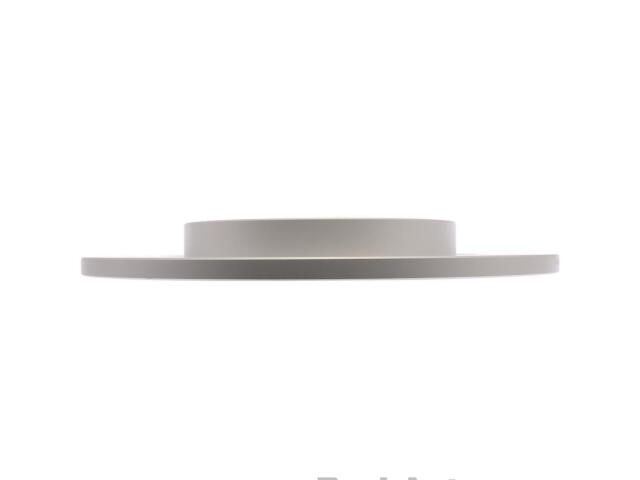

Rotor
ASTRA : 18A82513

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 0.35
Discard Thickness (MM): 8.9
Height (IN): 1.36
Height (MM): 34.6
Inside Diameter (IN): 8.25
Inside Diameter (MM): 209.5
Nominal Thickness (IN): 0.43
Nominal Thickness (MM): 11
Outside Diameter (IN): 12
Outside Diameter (MM): 304.8
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

HYUNDAI (2)

KIA (1)

OE号码

品牌	号码
OE	1942547*
