ASTRA
18A82484

第三方数据ASTRA : 18A82484

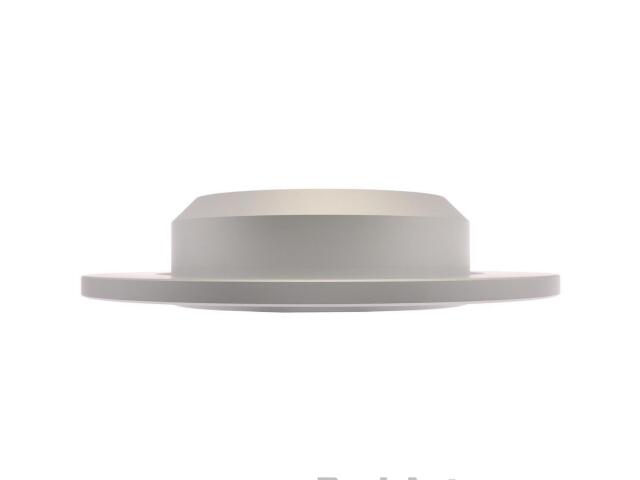

Rotor
ASTRA : 18A82484

Abs Tone Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.835
Center Hole Diameter (MM): 72
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Coated
Discard Thickness (IN): 0.488
Discard Thickness (MM): 12.4
Height (IN): 4.04
Inside Diameter (IN): 9.516
Inside Diameter (MM): 241.7
Length (IN): 13.56
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.669
Mounting Bolt Hole Diameter (MM): 17
Nominal Thickness (IN): 0.551
Nominal Thickness (MM): 14
Outside Diameter (IN): 13.465
Outside Diameter (MM): 342
Overall Height (IN): 3.012
Overall Height (MM): 76.5
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 19.13
Width (IN): 13.56

适用车型

JEEP (1)

WRANGLER (5)

2.0L L4 ELECTRIC/GAS Turbocharged (3)

2.0L L4 Turbocharged (3)

3.0L V6 DIESEL Turbocharged (3)

3.6L V6 (6)

6.4L V8 (1)

OE号码

品牌	号码
OE	1942261*
