ASTRA
18A82456

第三方数据ASTRA : 18A82456

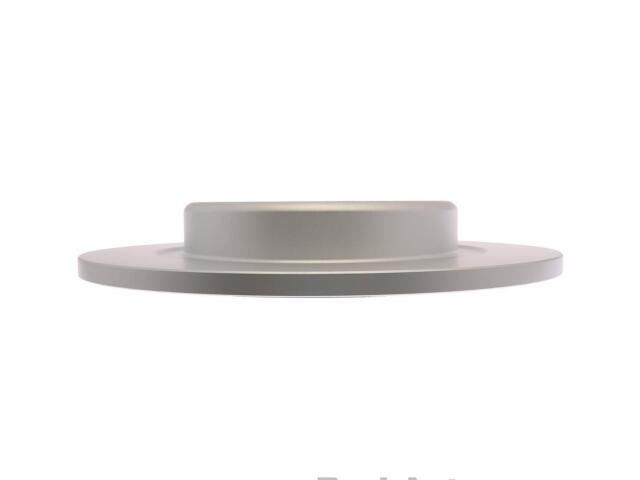

Rotor
ASTRA : 18A82456

Abs Tone Ring Included: No
Bolt Hole Diameter (IN): 0.63
Bolt Hole Diameter (MM): 16
Center Hole Diameter (IN): 2.657
Center Hole Diameter (MM): 67.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 0.394
Discard Thickness (MM): 10
Hat Finish: Coated
Height (IN): 1.77
Height (MM): 44.9
Inside Diameter (IN): 8.78
Inside Diameter (MM): 223
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.63
Mounting Bolt Hole Diameter (MM): 16
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12
Outside Diameter (IN): 12.402
Outside Diameter (MM): 315
Overall Height (IN): 1.768
Overall Height (MM): 44.9
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

BUICK (1)

OE号码

品牌	号码
OE	1939130*
