ASTRA
18A82433

第三方数据ASTRA : 18A82433

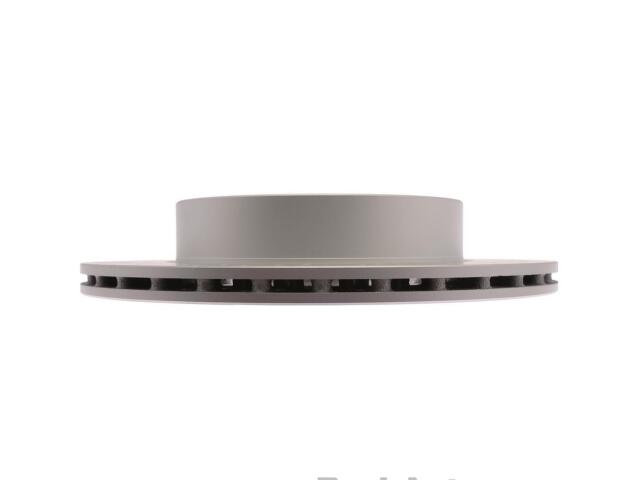

Rotor
ASTRA : 18A82433

Abs Tone Ring Included: No
Bolt Hole Diameter (IN): 0.51
Bolt Hole Diameter (MM): 12.85
Center Hole Diameter (IN): 2.283
Center Hole Diameter (MM): 58
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 0.709
Discard Thickness (MM): 18
Hat Finish: Coated
Height (IN): 2.5
Height (MM): 63.4
Inside Diameter (IN): 8.524
Inside Diameter (MM): 216.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.506
Mounting Bolt Hole Diameter (MM): 12.85
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20
Outside Diameter (IN): 12.835
Outside Diameter (MM): 326
Overall Height (IN): 2.496
Overall Height (MM): 63.4
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

SUBARU (2)
