ASTRA
18A82432

第三方数据ASTRA : 18A82432

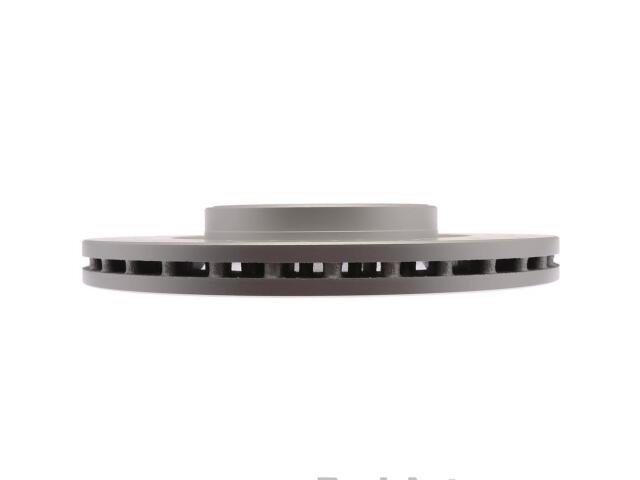

Rotor
ASTRA : 18A82432

Abs Tone Ring Included: No
Bolt Hole Diameter (IN): 0.51
Bolt Hole Diameter (MM): 12.85
Center Hole Diameter (IN): 2.283
Center Hole Diameter (MM): 58
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 1.102
Discard Thickness (MM): 28
Hat Finish: Coated
Height (IN): 2.07
Height (MM): 52.7
Inside Diameter (IN): 11.024
Inside Diameter (MM): 280
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.506
Mounting Bolt Hole Diameter (MM): 12.85
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 1.181
Outside Diameter (MM): 30
Overall Height (IN): 2.075
Overall Height (MM): 52.7
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

SUBARU (1)
