ASTRA
18A82392

第三方数据ASTRA : 18A82392

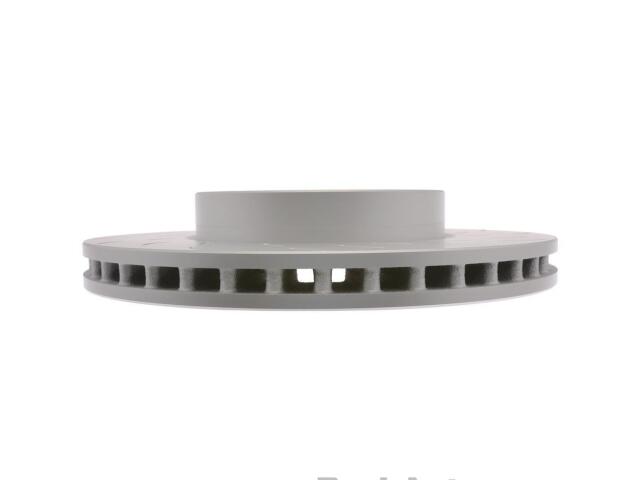

Rotor
ASTRA : 18A82392

Center Hole Diameter (IN): 2.787
Center Hole Diameter (MM): 70.8
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 1.063
Discard Thickness (MM): 27
Height (IN): 3.88
Inside Diameter (IN): 7.5
Inside Diameter (MM): 190.5
Length (IN): 14.25
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.555
Mounting Bolt Hole Diameter (MM): 14.1
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.638
Outside Diameter (MM): 321
Overall Height (IN): 2.402
Overall Height (MM): 61
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 23.1
Width (IN): 13.25

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	1939073*
