ASTRA
18A82331

第三方数据ASTRA : 18A82331

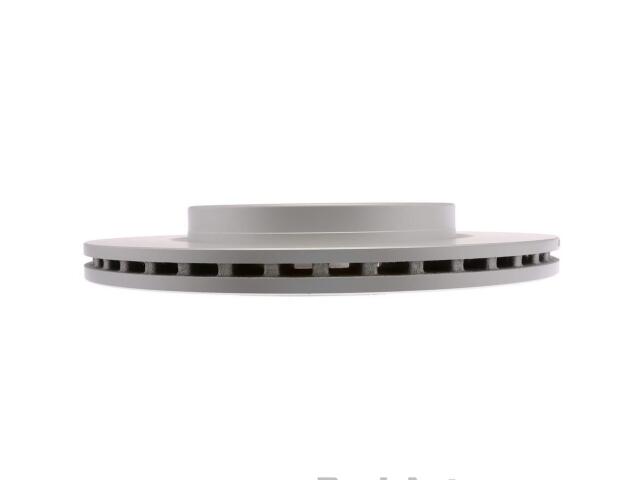

Rotor
ASTRA : 18A82331

Abs Tone Ring Included: No
Bolt Hole Diameter (IN): 0.55
Bolt Hole Diameter (MM): 14
Center Hole Diameter (IN): 2.785
Center Hole Diameter (MM): 70.75
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 0.827
Discard Thickness (MM): 21
Hat Finish: Coated
Height (IN): 1.77
Height (MM): 45
Inside Diameter (IN): 8.15
Inside Diameter (MM): 207
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.551
Mounting Bolt Hole Diameter (MM): 14
Nominal Thickness (IN): 0.906
Nominal Thickness (MM): 23
Outside Diameter (IN): 12.398
Outside Diameter (MM): 314.9
Overall Height (IN): 1.772
Overall Height (MM): 45
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

BUICK (2)

OE号码

品牌	号码
OE	1939130*
