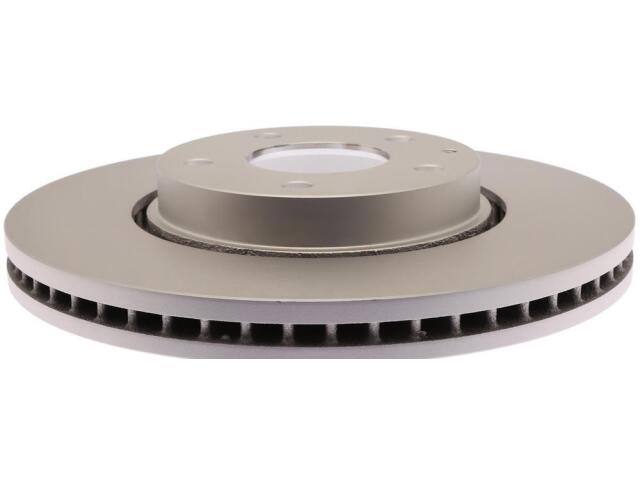

Rotor
ASTRA : 18A82264

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Bolt Hole Diameter (IN): 0.52
Bolt Hole Diameter (MM): 13.3
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 0.984
Discard Thickness (MM): 25
Hat Finish: Coated
Height (IN): 2.03
Height (MM): 51.5
Inside Diameter (IN): 7.094
Inside Diameter (MM): 180.2
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.524
Mounting Bolt Hole Diameter (MM): 13.3
Nominal Thickness (IN): 1.098
Nominal Thickness (MM): 27.9
Original Equipment Replacement: Yes
Outside Diameter (IN): 11.677
Outside Diameter (MM): 296.6
Overall Height (IN): 2.028
Overall Height (MM): 51.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

MAZDA (2)

OE号码

品牌	号码
OE	1938827*
