ASTRA
18A82263PV

第三方数据ASTRA : 18A82263PV

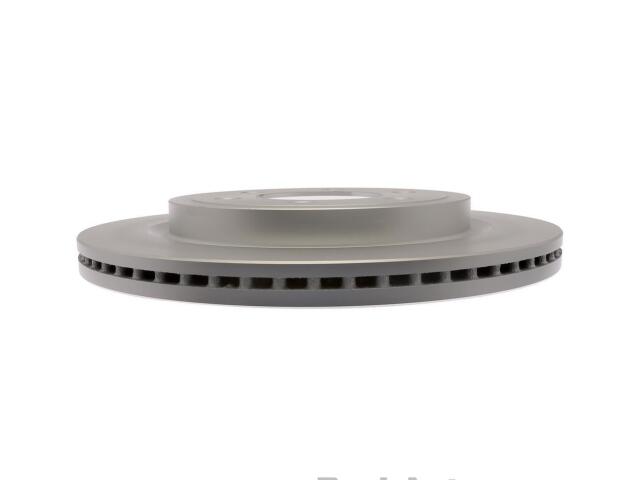

Rotor
ASTRA : 18A82263PV

Abs Tone Ring Included: No
Bearings Included: No
Bolt Circle Diameter (IN): 5.315
Bolt Circle Diameter (MM): 135
Center Hole Diameter (IN): 3.547
Center Hole Diameter (MM): 90.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Uniform
Discard Thickness (IN): 0.886
Discard Thickness (MM): 22.5
Height (IN): 1.772
Height (MM): 45
Inside Diameter (IN): 9.646
Inside Diameter (MM): 245
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.315
Mounting Bolt Hole Circle Diameter (MM): 135
Mounting Bolt Hole Diameter (IN): 0.614
Mounting Bolt Hole Diameter (MM): 15.6
Nominal Thickness (IN): 0.945
Nominal Thickness (MM): 24
Outside Diameter (IN): 13.228
Outside Diameter (MM): 336
Overall Height (IN): 1.772
Overall Height (MM): 45
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

FORD (2)

F-150 (5)

2.7L V6 Turbocharged (3)

3.0L V6 DIESEL Turbocharged (3)

3.3L V6 (3)

3.5L V6 Turbocharged (3)

5.0L V8 (3)

EXPEDITION (1)

LINCOLN (1)

OE号码

品牌	号码
OE	1939022*
