18A82160

第三方数据ASTRA : 18A82160

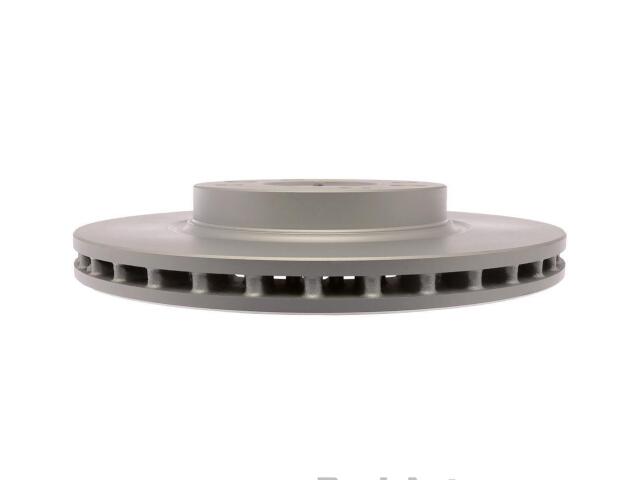

Rotor
ASTRA : 18A82160

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.973
Bolt Circle Diameter (MM): 100.9
Center Hole Diameter (IN): 2.409
Center Hole Diameter (MM): 61.2
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 0.78
Discard Thickness (MM): 19.8
Height (IN): 1.732
Height (MM): 44
Inside Diameter (IN): 6.368
Inside Diameter (MM): 161.75
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.543
Mounting Bolt Hole Diameter (MM): 13.8
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22
Outside Diameter (IN): 10.154
Outside Diameter (MM): 257.9
Overall Height (IN): 1.732
Overall Height (MM): 44
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

RENAULT (3)

SMART (3)

OE号码

品牌	号码
OE	1939021*
