ASTRA
18A82158

第三方数据ASTRA : 18A82158

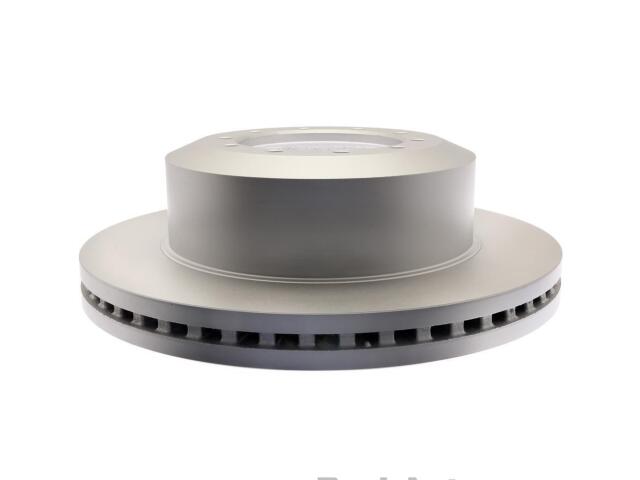

Rotor
ASTRA : 18A82158

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 6.423
Bolt Circle Diameter (MM): 163.1
Center Hole Diameter (IN): 5.488
Center Hole Diameter (MM): 139.4
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 1.472
Discard Thickness (MM): 37.4
Height (IN): 4.882
Height (MM): 124
Inside Diameter (IN): 10.472
Inside Diameter (MM): 266
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 6.423
Mounting Bolt Hole Circle Diameter (MM): 163.15
Mounting Bolt Hole Diameter (IN): 0.512
Mounting Bolt Hole Diameter (MM): 13
Nominal Thickness (IN): 1.535
Nominal Thickness (MM): 39
Outside Diameter (IN): 15.748
Outside Diameter (MM): 400
Overall Height (IN): 4.882
Overall Height (MM): 124
Slotted: No
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.512
Stud/Lug Hole Diameter (MM): 13
Surface Type: Smooth

适用车型

FORD (5)

F-250 SUPER DUTY (3)

F-350 SUPER DUTY (3)

F-450 SUPER DUTY (3)

F-550 SUPER DUTY (3)

F-600 SUPER DUTY (2)

OE号码

品牌	号码
OE	1939021*
