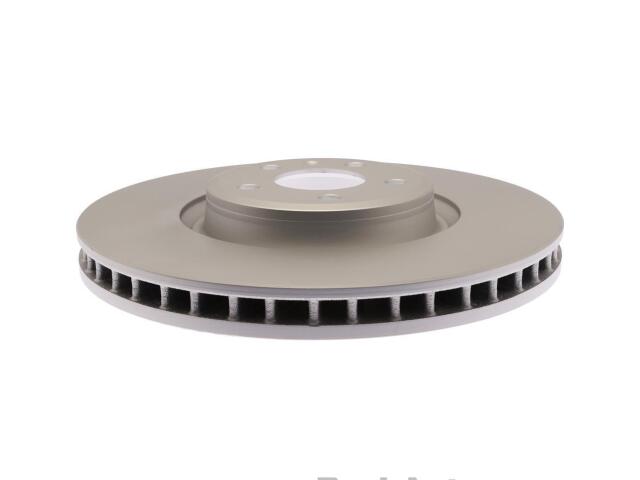

Rotor
ASTRA : 18A82153

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.409
Bolt Circle Diameter (MM): 112
Bolt Hole Diameter (IN): 0.6
Bolt Hole Diameter (MM): 15.2
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 1.26
Discard Thickness (MM): 32
Hat Finish: Coated
Height (IN): 2.25
Height (MM): 57.1
Inside Diameter (IN): 8.102
Inside Diameter (MM): 205.8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.409
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 0.598
Mounting Bolt Hole Diameter (MM): 15.2
Nominal Thickness (IN): 1.339
Nominal Thickness (MM): 34
Original Equipment Replacement: Yes
Outside Diameter (IN): 13.748
Outside Diameter (MM): 349.2
Overall Height (IN): 2.248
Overall Height (MM): 57.1
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

AUDI (5)

Q5 (2)

Q7 (3)

S4 (2)

S5 (2)

SQ5 (2)

OE号码

品牌	号码
OE	1938827*
