ASTRA
18A82152

第三方数据ASTRA : 18A82152

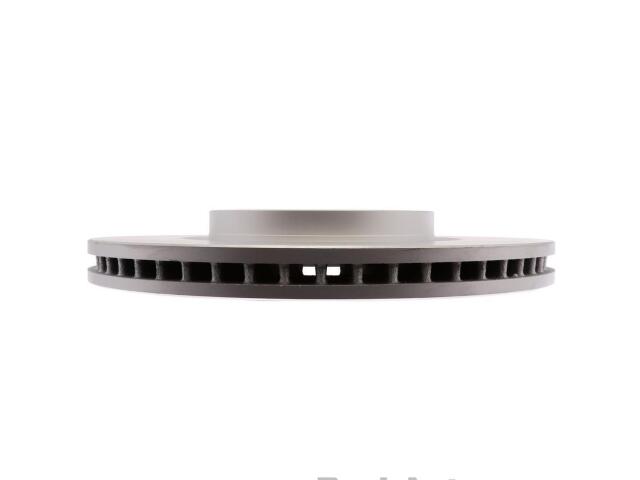

Rotor
ASTRA : 18A82152

Center Hole Diameter (IN): 2.657
Center Hole Diameter (MM): 67.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 1.063
Discard Thickness (MM): 27
Height (IN): 2.2
Inside Diameter (IN): 8.425
Inside Diameter (MM): 214
Length (IN): 14.3
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.641
Mounting Bolt Hole Diameter (MM): 16.25
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 13.583
Outside Diameter (MM): 345
Overall Height (IN): 2.004
Overall Height (MM): 50.9
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 25.5
Width (IN): 13.5

适用车型

BUICK (1)

CADILLAC (2)

XT5 (2)

XT6 (2)

OE号码

品牌	号码
OE	1939072*
