第三方数据ASTRA : 18A82061

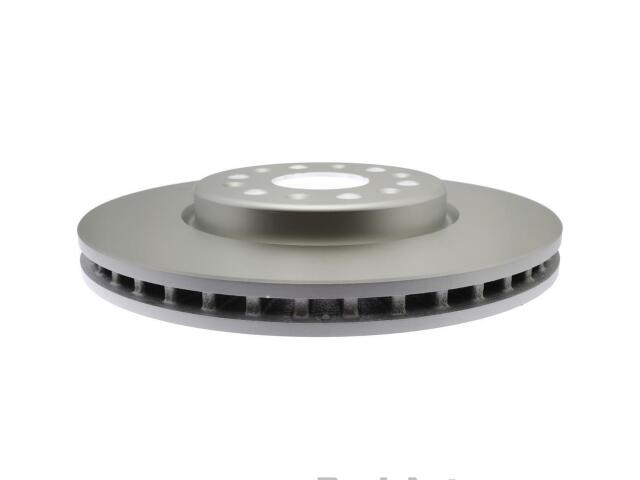

Rotor
ASTRA : 18A82061

Bolt Circle Diameter (IN): 4.724
Bolt Circle Diameter (MM): 120
Center Hole Diameter (IN): 2.66
Center Hole Diameter (MM): 67.55
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 1.063
Discard Thickness (MM): 27
Height (IN): 2.008
Height (MM): 51
Inside Diameter (IN): 7.362
Inside Diameter (MM): 187
Length (IN): 13.11
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 119.9
Mounting Bolt Hole Diameter (IN): 0.63
Mounting Bolt Hole Diameter (MM): 16
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Original Equipment Replacement: Yes
Outside Diameter (IN): 12.638
Outside Diameter (MM): 321
Overall Height (IN): 2.008
Overall Height (MM): 51
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 21.8
Width (IN): 13.11

适用车型

BUICK (1)

CHEVROLET (2)

BLAZER (3)

TRAVERSE (2)

GMC (1)

OE号码

品牌	号码
OE	1938247*
