ASTRA
18A82059

第三方数据ASTRA : 18A82059

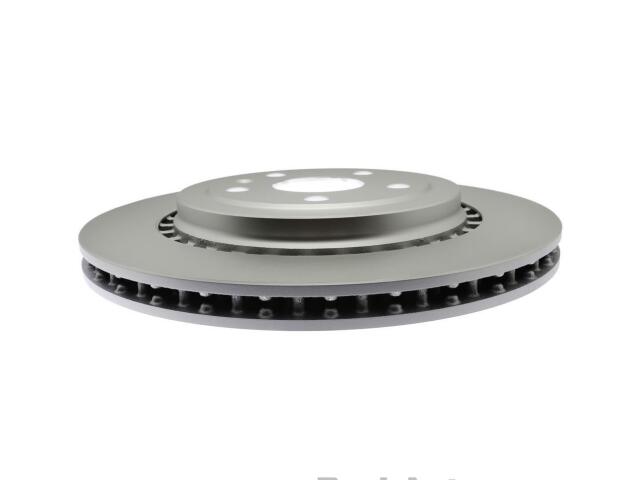

Rotor
ASTRA : 18A82059

Bolt Circle Diameter (IN): 4.724
Bolt Circle Diameter (MM): 120
Center Hole Diameter (IN): 2.657
Center Hole Diameter (MM): 67.5
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 0.945
Discard Thickness (MM): 24
Height (IN): 1.89
Height (MM): 48
Inside Diameter (IN): 9.409
Inside Diameter (MM): 239
Length (IN): 13.65
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.63
Mounting Bolt Hole Diameter (MM): 16
Nominal Thickness (IN): 1.024
Nominal Thickness (MM): 26
Original Equipment Replacement: Yes
Outside Diameter (IN): 13.346
Outside Diameter (MM): 339
Overall Height (IN): 1.89
Overall Height (MM): 48
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 19.6
Width (IN): 13.65

适用车型

CADILLAC (1)

CHEVROLET (1)

OE号码

品牌	号码
OE	1938247*
