ASTRA
18A82044SD

第三方数据ASTRA : 18A82044SD

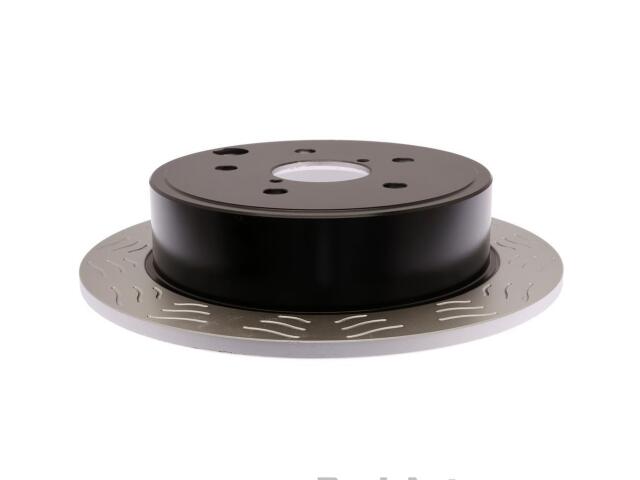

Rotor
ASTRA : 18A82044SD

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Hole Diameter (IN): 2.283
Center Hole Diameter (MM): 58
Conventional Or Drum-In-Hat Type Rotor: Conventional
Discard Thickness (IN): 0.335
Discard Thickness (MM): 8.5
Height (IN): 2.5
Height (MM): 63.5
Inside Diameter (IN): 8.31
Inside Diameter (MM): 211
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.512
Mounting Bolt Hole Diameter (MM): 13
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 9.9
Original Equipment Replacement: Yes
Outside Diameter (IN): 11.248
Outside Diameter (MM): 285.7
Overall Height (IN): 2.5
Overall Height (MM): 63.5
Solid Or Vented Type Rotor: Vented

适用车型

SUBARU (1)

OE号码

品牌	号码
OE	1938986*
