ASTRA
18A82040

第三方数据ASTRA : 18A82040

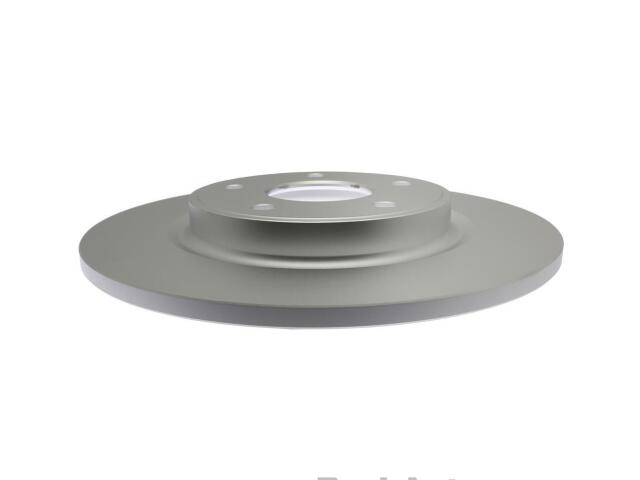

Rotor
ASTRA : 18A82040

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5
Bolt Circle Diameter (MM): 127
Center Hole Diameter (IN): 2.854
Center Hole Diameter (MM): 72.5
Construction: Composite
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 0.409
Discard Thickness (MM): 10.4
Height (IN): 1.3
Inside Diameter (IN): 8.268
Inside Diameter (MM): 210
Length (IN): 12.6
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.571
Mounting Bolt Hole Diameter (MM): 14.5
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12
Outside Diameter (IN): 12.598
Outside Diameter (MM): 320
Overall Height (IN): 1.386
Overall Height (MM): 35.2
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 13.4
Width (IN): 12.6

适用车型

CHRYSLER (3)

GRAND CARAVAN (1)

PACIFICA (2)

VOYAGER (1)

OE号码

品牌	号码
OE	1936603*
