ASTRA
18A82038SD

第三方数据ASTRA : 18A82038SD

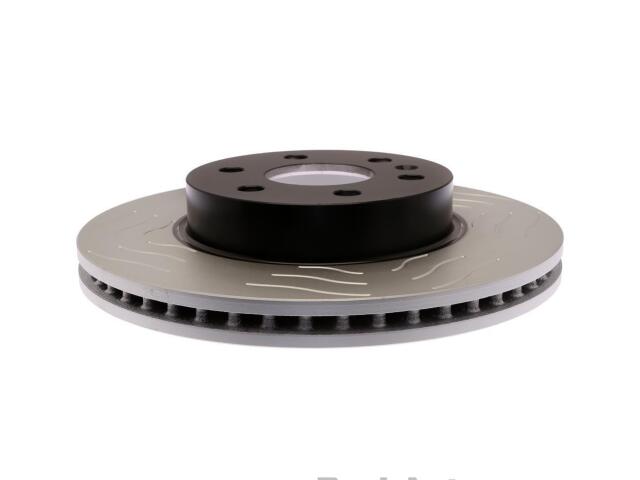

Rotor
ASTRA : 18A82038SD

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.37
Bolt Circle Diameter (MM): 111
Center Hole Diameter (IN): 3.15
Center Hole Diameter (MM): 80
Conventional Or Drum-In-Hat Type Rotor: Conventional
Discard Thickness (IN): 0.984
Discard Thickness (MM): 25
Height (IN): 2.4
Height (MM): 60.9
Inside Diameter (IN): 7.33
Inside Diameter (MM): 186.3
Mounting Bolt Hole Circle Diameter (IN): 4.37
Mounting Bolt Hole Circle Diameter (MM): 111
Mounting Bolt Hole Diameter (IN): 0.63
Mounting Bolt Hole Diameter (MM): 16
Nominal Thickness (IN): 1.067
Nominal Thickness (MM): 27.1
Original Equipment Replacement: Yes
Outside Diameter (IN): 12.189
Outside Diameter (MM): 309.6
Overall Height (IN): 2.398
Overall Height (MM): 60.9
Solid Or Vented Type Rotor: Vented

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	1938981*
