ASTRA
18A82038

第三方数据ASTRA : 18A82038

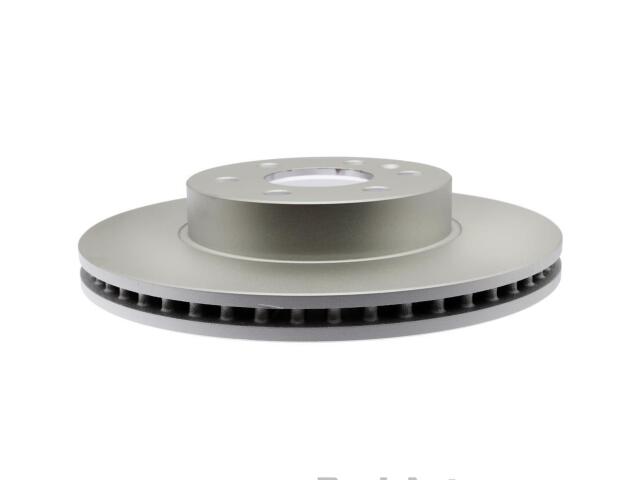

Rotor
ASTRA : 18A82038

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.724
Bolt Circle Diameter (MM): 120
Center Hole Diameter (IN): 3.15
Center Hole Diameter (MM): 80
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 0.984
Discard Thickness (MM): 25
Height (IN): 12.8
Inside Diameter (IN): 7.333
Inside Diameter (MM): 186.25
Length (IN): 13.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.37
Mounting Bolt Hole Circle Diameter (MM): 111
Mounting Bolt Hole Diameter (IN): 0.63
Mounting Bolt Hole Diameter (MM): 16
Nominal Thickness (IN): 1.067
Nominal Thickness (MM): 27.1
Outside Diameter (IN): 12.189
Outside Diameter (MM): 309.6
Overall Height (IN): 2.398
Overall Height (MM): 60.9
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 20.5
Width (IN): 2.8

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	1936428*
