ASTRA
18A81999

第三方数据ASTRA : 18A81999

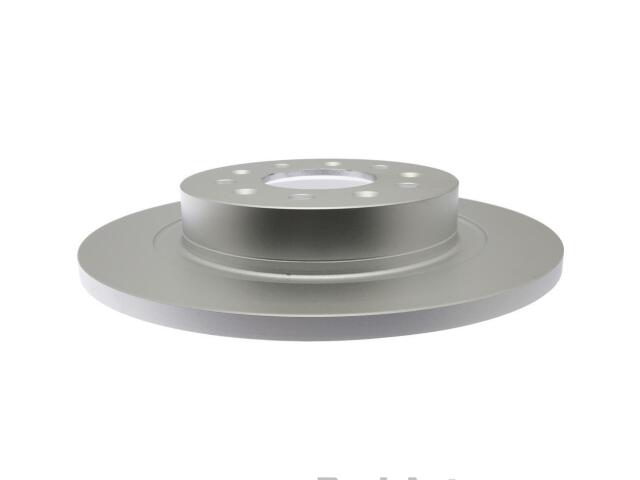

Rotor
ASTRA : 18A81999

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.528
Bolt Circle Diameter (MM): 115
Center Hole Diameter (IN): 2.78
Center Hole Diameter (MM): 70.6
Construction: Composite
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 0.394
Discard Thickness (MM): 10
Height (IN): 2
Inside Diameter (IN): 8.004
Inside Diameter (MM): 203.3
Length (IN): 12.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.551
Mounting Bolt Hole Diameter (MM): 14
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12
Outside Diameter (IN): 11.339
Outside Diameter (MM): 288
Overall Height (IN): 1.801
Overall Height (MM): 45.75
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 11.3
Width (IN): 11.6

适用车型

BUICK (4)

REGAL SPORTBACK (2)

REGAL TOURX (1)

ENVISION (1)

LACROSSE (2)

CHEVROLET (2)

EQUINOX (3)

MALIBU (3)

1.5L L4 Turbocharged (9)

1.8L L4 ELECTRIC/GAS (4)

2.0L L4 Turbocharged (7)

GMC (1)

OE号码

品牌	号码
OE	1936602*
