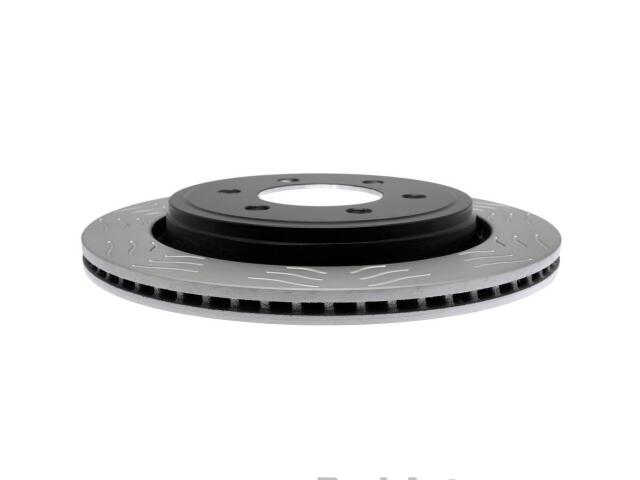

Rotor
ASTRA : 18A81951SD

Bolt Circle Diameter (IN): 5.314
Bolt Circle Diameter (MM): 135
Center Hole Diameter (IN): 3.543
Center Hole Diameter (MM): 90
Conventional Or Drum-In-Hat Type Rotor: Conventional
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20
Height (IN): 1.688976378
Height (MM): 42.9
Inside Diameter (IN): 9.587
Inside Diameter (MM): 243.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.315
Mounting Bolt Hole Circle Diameter (MM): 135
Mounting Bolt Hole Diameter (IN): 0.618
Mounting Bolt Hole Diameter (MM): 15.7
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22
Outside Diameter (IN): 13.228
Outside Diameter (MM): 336
Overall Height (IN): 1.689
Overall Height (MM): 42.9
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

OE号码

品牌	号码
OE	1936066*
