ASTRA
18A81951

第三方数据ASTRA : 18A81951

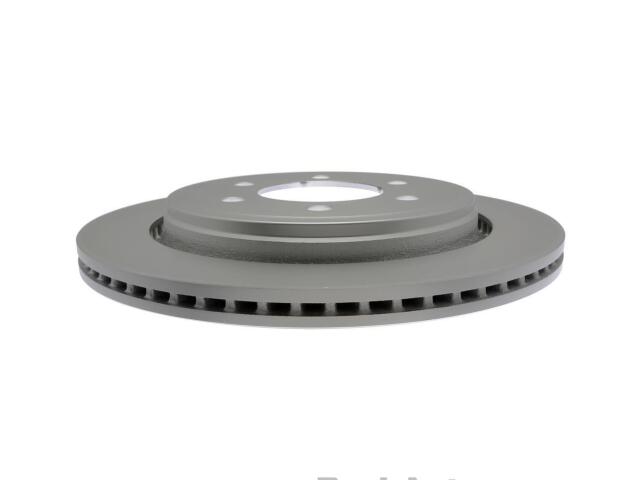

Rotor
ASTRA : 18A81951

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.54
Center Hole Diameter (MM): 89.9
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20
Height (IN): 1.771653543
Height (MM): 45
Inside Diameter (IN): 9.606
Inside Diameter (MM): 244
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.315
Mounting Bolt Hole Circle Diameter (MM): 135
Mounting Bolt Hole Diameter (IN): 0.618
Mounting Bolt Hole Diameter (MM): 15.7
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22
Outside Diameter (IN): 13.228
Outside Diameter (MM): 336
Overall Height (IN): 1.772
Overall Height (MM): 45
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

FORD (1)

OE号码

品牌	号码
OE	1936066*
