ASTRA
18A81830

第三方数据ASTRA : 18A81830

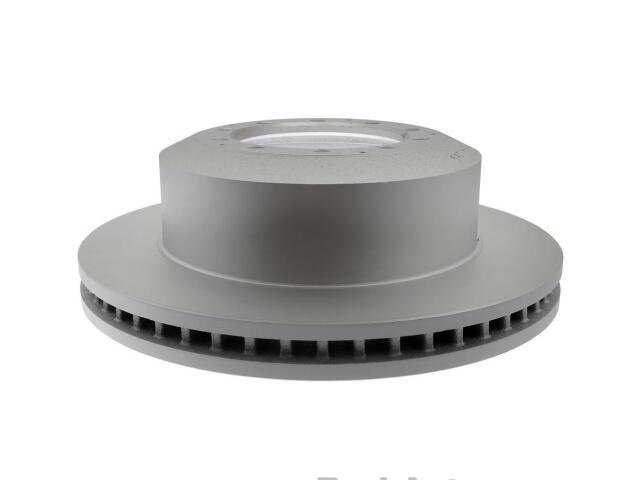

Rotor
ASTRA : 18A81830

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 8.858
Bolt Circle Diameter (MM): 225
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 1.472
Discard Thickness (MM): 37.4
Height (IN): 12.8
Inside Diameter (IN): 10.622
Inside Diameter (MM): 269.8
Length (IN): 13.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 6.417
Mounting Bolt Hole Circle Diameter (MM): 163
Mounting Bolt Hole Diameter (IN): 0.512
Mounting Bolt Hole Diameter (MM): 13
Nominal Thickness (IN): 1.535
Nominal Thickness (MM): 39
Outside Diameter (IN): 15.354
Outside Diameter (MM): 390
Overall Height (IN): 4.886
Overall Height (MM): 124.1
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 43
Width (IN): 2.8

适用车型

RAM (2)

4500 (2)

6.4L V8 (10)

6.7L L6 DIESEL Turbocharged (13)

5500 (2)

6.4L V8 (10)

6.7L L6 DIESEL Turbocharged (13)

OE号码

品牌	号码
OE	1936427*
