ASTRA
18A81814G

第三方数据ASTRA : 18A81814G

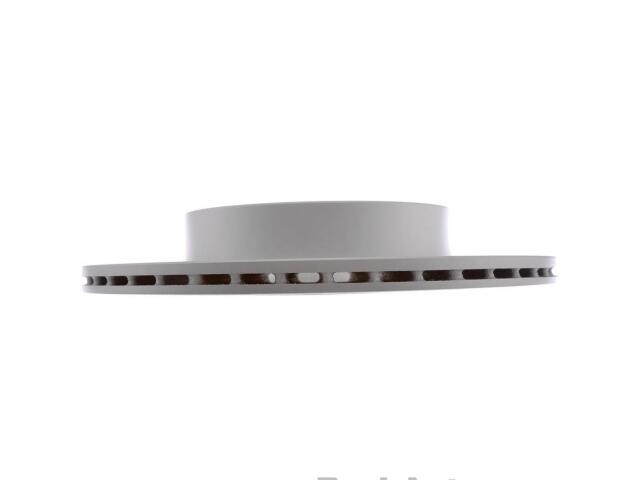

Rotor
ASTRA : 18A81814G

Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68
Conventional Or Drum-In-Hat Type Rotor: Conventional
Discard Thickness (IN): 0.551
Discard Thickness (MM): 14
Inside Diameter (IN): 7.874
Inside Diameter (MM): 200
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.504
Mounting Bolt Hole Diameter (MM): 12.8
Nominal Thickness (IN): 0.63
Nominal Thickness (MM): 16
Outside Diameter (IN): 11.48
Outside Diameter (MM): 291.6
Overall Height (IN): 1.858
Overall Height (MM): 47.2
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.504
Stud/Lug Hole Diameter (MM): 12.8
Surface Type: Smooth

适用车型

NISSAN (4)

ROGUE (3)

QASHQAI (1)

ROGUE SPORT (1)

LEAF (1)
