ASTRA
18A81795

第三方数据ASTRA : 18A81795

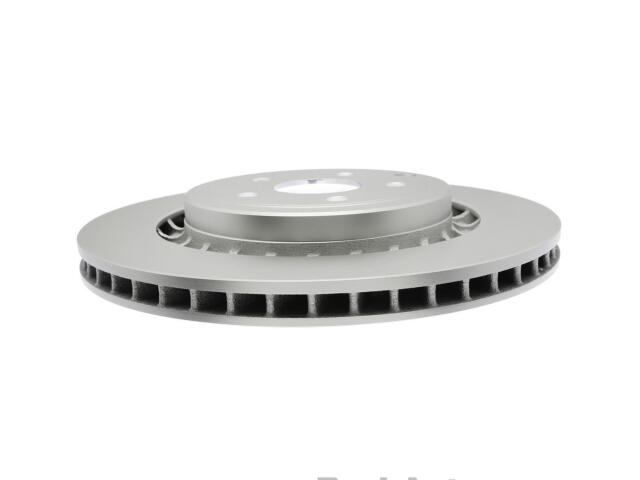

Rotor
ASTRA : 18A81795

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.724
Bolt Circle Diameter (MM): 120
Center Hole Diameter (IN): 2.652
Center Hole Diameter (MM): 67.35
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26
Height (IN): 2.031
Height (MM): 51.6
Inside Diameter (IN): 9.776
Inside Diameter (MM): 248.3
Length (IN): 15.51
Material: Steel
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.638
Mounting Bolt Hole Diameter (MM): 16.2
Nominal Thickness (IN): 1.108
Nominal Thickness (MM): 28.15
Original Equipment Replacement: Yes
Outside Diameter (IN): 14.173
Outside Diameter (MM): 360
Overall Height (IN): 2.031
Overall Height (MM): 51.6
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 23.97
Width (IN): 14.88

适用车型

CHEVROLET (1)

OE号码

品牌	号码
OE	1936064*
