ASTRA
18A81771

第三方数据ASTRA : 18A81771

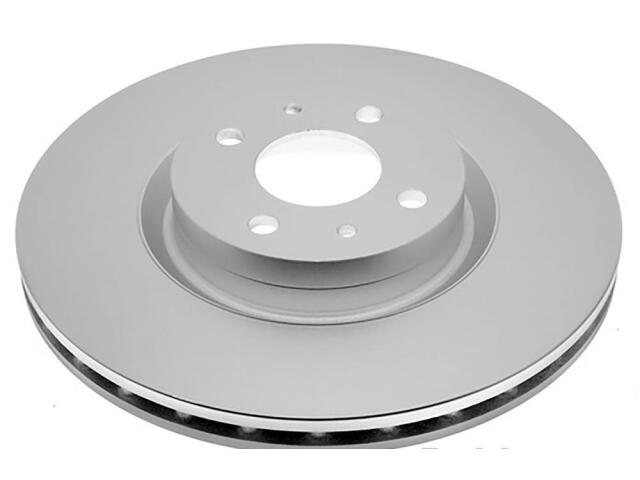

Rotor
ASTRA : 18A81771

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.323
Center Hole Diameter (MM): 59
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 0.795
Discard Thickness (MM): 20.2
Height (IN): 2
Inside Diameter (IN): 6.76
Inside Diameter (MM): 171.7
Length (IN): 12.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.858
Mounting Bolt Hole Circle Diameter (MM): 98
Mounting Bolt Hole Diameter (IN): 0.52
Mounting Bolt Hole Diameter (MM): 13.2
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22
Outside Diameter (IN): 11.141
Outside Diameter (MM): 283
Overall Height (IN): 1.718
Overall Height (MM): 43.65
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 13.8
Width (IN): 11.6

适用车型

FIAT (2)

500 (2)

PALIO (1)

RAM (1)

OE号码

品牌	号码
OE	1933993*
