ASTRA
18A81769

第三方数据ASTRA : 18A81769

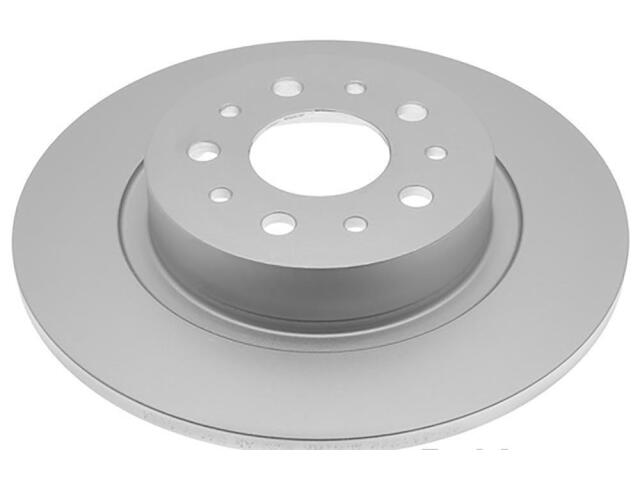

Rotor
ASTRA : 18A81769

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.324
Center Hole Diameter (MM): 59
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8
Height (IN): 1.8
Inside Diameter (IN): 6.87
Inside Diameter (MM): 174.5
Length (IN): 10.9
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.858
Mounting Bolt Hole Circle Diameter (MM): 98
Mounting Bolt Hole Diameter (IN): 0.516
Mounting Bolt Hole Diameter (MM): 13.1
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10
Outside Diameter (IN): 10.394
Outside Diameter (MM): 264
Overall Height (IN): 1.594
Overall Height (MM): 40.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 8.07
Width (IN): 11.7

适用车型

FIAT (1)

OE号码

品牌	号码
OE	1933993*
