ASTRA
18A81766SD

第三方数据ASTRA : 18A81766SD

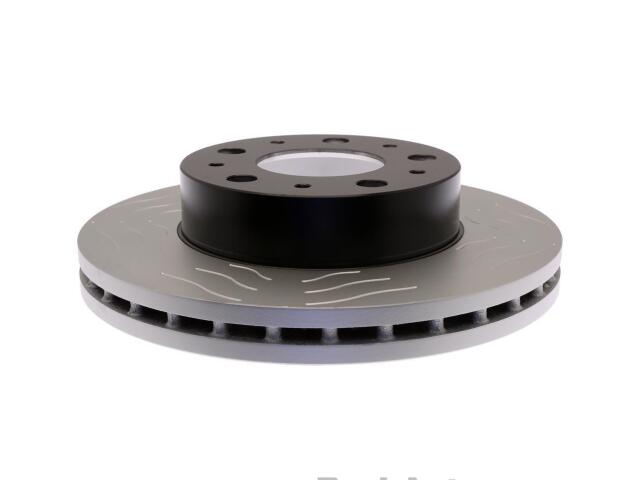

Rotor
ASTRA : 18A81766SD

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.11
Bolt Circle Diameter (MM): 129.8
Center Hole Diameter (IN): 3.15
Center Hole Diameter (MM): 80
Conventional Or Drum-In-Hat Type Rotor: Conventional
Discard Thickness (IN): 1.181
Discard Thickness (MM): 30
Height (IN): 1.14
Height (MM): 29
Inside Diameter (IN): 7.19
Inside Diameter (MM): 182.7
Mounting Bolt Hole Circle Diameter (IN): 5.11
Mounting Bolt Hole Circle Diameter (MM): 129.8
Mounting Bolt Hole Diameter (IN): 0.694
Mounting Bolt Hole Diameter (MM): 17.65
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32
Original Equipment Replacement: Yes
Outside Diameter (IN): 11.811
Outside Diameter (MM): 300
Overall Height (IN): 1.141
Overall Height (MM): 29
Solid Or Vented Type Rotor: Vented

适用车型

RAM (3)

PROMASTER 1500 (2)

PROMASTER 2500 (2)

PROMASTER 3500 (2)

OE号码

品牌	号码
OE	1938983*
