ASTRA
18A81766

第三方数据ASTRA : 18A81766

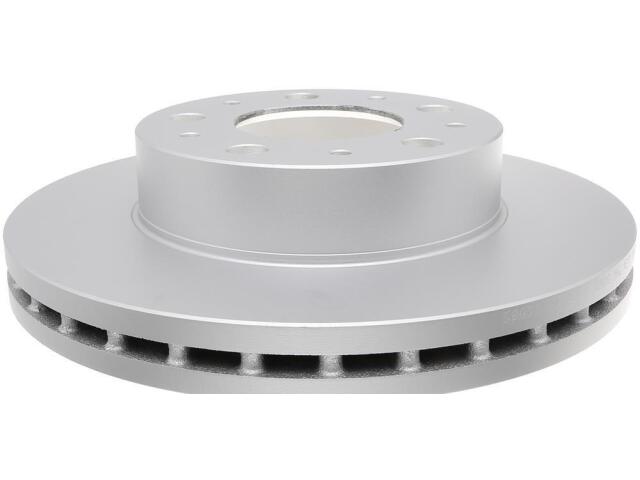

Rotor
ASTRA : 18A81766

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.15
Center Hole Diameter (MM): 80
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 1.181
Discard Thickness (MM): 30
Height (IN): 12.5
Inside Diameter (IN): 7.193
Inside Diameter (MM): 182.7
Length (IN): 12.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.11
Mounting Bolt Hole Circle Diameter (MM): 129.8
Mounting Bolt Hole Diameter (IN): 0.695
Mounting Bolt Hole Diameter (MM): 17.65
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32
Outside Diameter (IN): 11.811
Outside Diameter (MM): 300
Overall Height (IN): 1.141
Overall Height (MM): 29
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 22.73
Width (IN): 3.9

适用车型

FIAT (1)

PEUGEOT (1)

RAM (3)

PROMASTER 1500 (2)

PROMASTER 2500 (2)

PROMASTER 3500 (2)

OE号码

品牌	号码
OE	1933993*
