ASTRA
18A81612

第三方数据ASTRA : 18A81612

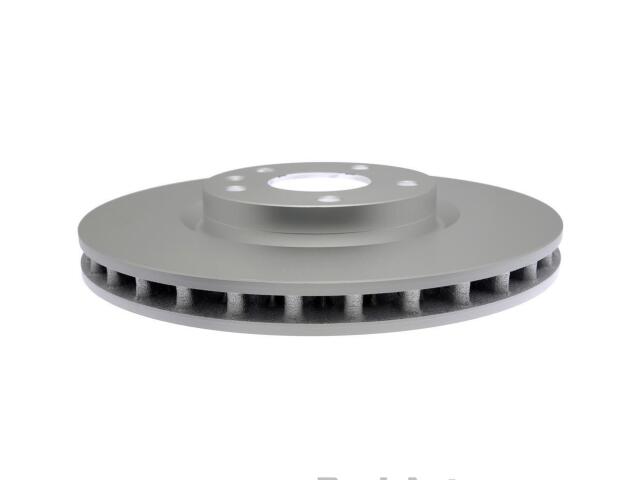

Rotor
ASTRA : 18A81612

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.783
Center Hole Diameter (MM): 70.7
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 1.102
Discard Thickness (MM): 28
Height (IN): 12.8
Inside Diameter (IN): 7.512
Inside Diameter (MM): 190.8
Length (IN): 12.8
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.598
Mounting Bolt Hole Diameter (MM): 15.2
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.638
Outside Diameter (MM): 321
Overall Height (IN): 2.008
Overall Height (MM): 51
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 20.1
Width (IN): 2.8

适用车型

CHEVROLET (1)

OE号码

品牌	号码
OE	1935880*
