ASTRA
18A81421

第三方数据ASTRA : 18A81421

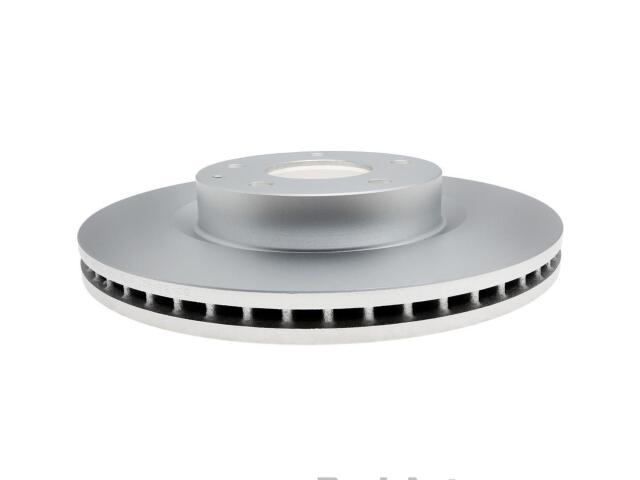

Rotor
ASTRA : 18A81421

Abs Tone Ring Included: No
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 0.91
Discard Thickness (MM): 23.1
Height (IN): 2.3
Length (IN): 13.1
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Nominal Thickness (IN): 0.98
Nominal Thickness (MM): 24.9
Outside Diameter (IN): 11.591
Outside Diameter (MM): 294.4
Overall Height (IN): 2.646
Overall Height (MM): 67.2
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 16.5
Width (IN): 12.1

适用车型

MAZDA (2)

OE号码

品牌	号码
OE	1936009*
