ASTRA
18A81109SD

第三方数据ASTRA : 18A81109SD

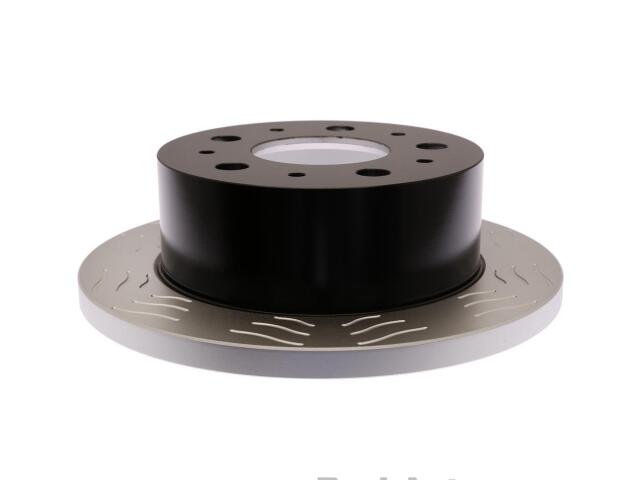

Rotor
ASTRA : 18A81109SD

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.12
Bolt Circle Diameter (MM): 130
Center Hole Diameter (IN): 3.11
Center Hole Diameter (MM): 79
Conventional Or Drum-In-Hat Type Rotor: Conventional
Discard Thickness (IN): 0.559
Discard Thickness (MM): 14.2
Height (IN): 3.23
Height (MM): 82
Inside Diameter (IN): 7.58
Inside Diameter (MM): 192.5
Mounting Bolt Hole Circle Diameter (IN): 5.118
Mounting Bolt Hole Circle Diameter (MM): 130
Mounting Bolt Hole Diameter (IN): 0.693
Mounting Bolt Hole Diameter (MM): 17.6
Nominal Thickness (IN): 0.63
Nominal Thickness (MM): 16
Original Equipment Replacement: Yes
Outside Diameter (IN): 11.012
Outside Diameter (MM): 279.7
Overall Height (IN): 3.228
Overall Height (MM): 82
Solid Or Vented Type Rotor: Solid

适用车型

RAM (3)

PROMASTER 1500 (2)

PROMASTER 2500 (2)

PROMASTER 3500 (2)

OE号码

品牌	号码
OE	1938983*
