ASTRA
18A81099

第三方数据ASTRA : 18A81099

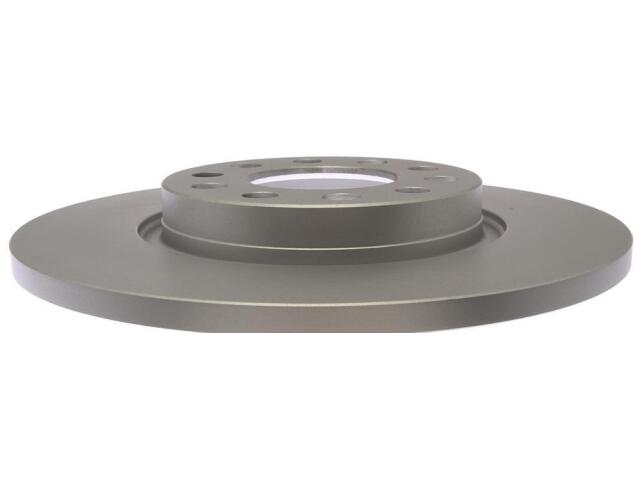

Rotor
ASTRA : 18A81099

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.76
Center Hole Diameter (MM): 70.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 0.409
Discard Thickness (MM): 10.4
Height (IN): 1.7
Inside Diameter (IN): 6.693
Inside Diameter (MM): 170
Length (IN): 11.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.331
Mounting Bolt Hole Circle Diameter (MM): 110
Mounting Bolt Hole Diameter (IN): 0.618
Mounting Bolt Hole Diameter (MM): 15.7
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12
Outside Diameter (IN): 10.945
Outside Diameter (MM): 278
Overall Height (IN): 1.307
Overall Height (MM): 33.2
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 9.99
Width (IN): 12.8

适用车型

CHRYSLER (1)

JEEP (1)

CHEROKEE (3)

2.0L L4 Turbocharged (3)

2.4L L4 (8)

3.2L V6 (8)

OE号码

品牌	号码
OE	1933992*
