ASTRA
18A81064

第三方数据ASTRA : 18A81064

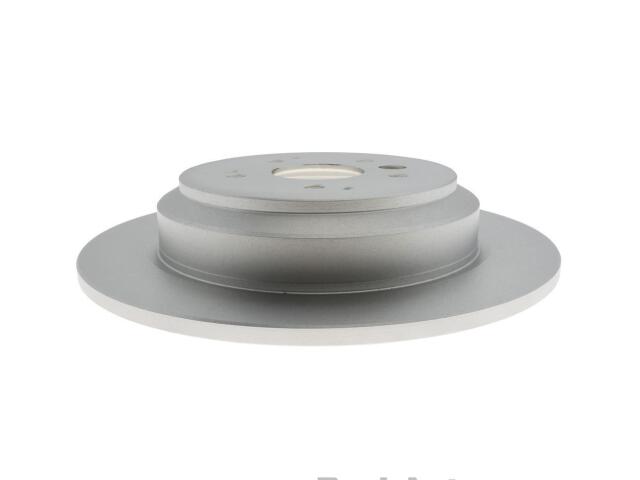

Rotor
ASTRA : 18A81064

Abs Tone Ring Included: No
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 0.35
Discard Thickness (MM): 8.9
Height (IN): 2.2
Length (IN): 14.3
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Nominal Thickness (IN): 0.43
Nominal Thickness (MM): 10.9
Outside Diameter (IN): 12.982
Outside Diameter (MM): 329.75
Overall Height (IN): 2.331
Overall Height (MM): 59.2
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 14.1
Width (IN): 13.5

适用车型

ACURA (1)

OE号码

品牌	号码
OE	1936007*
