ASTRA
18A81055

第三方数据ASTRA : 18A81055

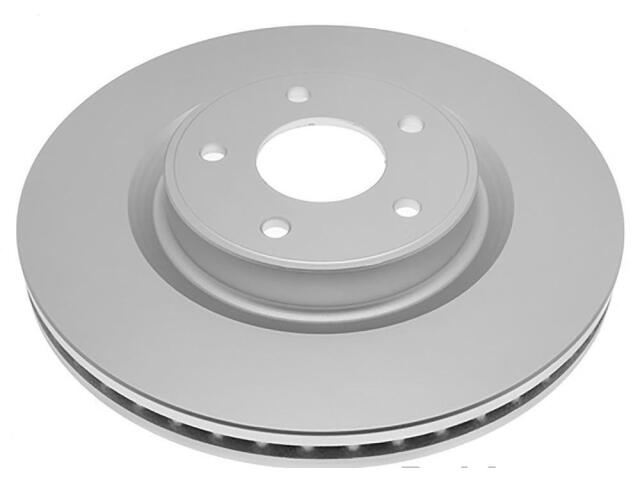

Rotor
ASTRA : 18A81055

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.68
Center Hole Diameter (MM): 68.05
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26
Height (IN): 12.9
Inside Diameter (IN): 8.11
Inside Diameter (MM): 206
Length (IN): 12.9
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.504
Mounting Bolt Hole Diameter (MM): 12.8
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28
Outside Diameter (IN): 12.598
Outside Diameter (MM): 320
Overall Height (IN): 1.94
Overall Height (MM): 49.3
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 22.35
Width (IN): 2.7

适用车型

NISSAN (2)

MURANO (2)

PATHFINDER (2)

INFINITI (2)

OE号码

品牌	号码
OE	1933992*
