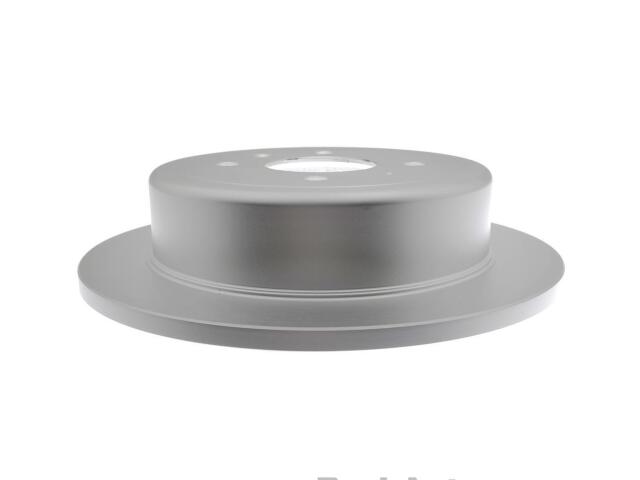

Rotor
ASTRA : 18A81052

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.362
Center Hole Diameter (MM): 60
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8
Height (IN): 2.6
Inside Diameter (IN): 7.362
Inside Diameter (MM): 187
Length (IN): 12
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.492
Mounting Bolt Hole Diameter (MM): 12.5
Nominal Thickness (IN): 0.413
Nominal Thickness (MM): 10.5
Outside Diameter (IN): 10.157
Outside Diameter (MM): 258
Overall Height (IN): 2.26
Overall Height (MM): 57.4
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 9.7
Width (IN): 10.7

适用车型

CHEVROLET (2)

OE号码

品牌	号码
OE	1935879*
