ASTRA
18A81048

第三方数据ASTRA : 18A81048

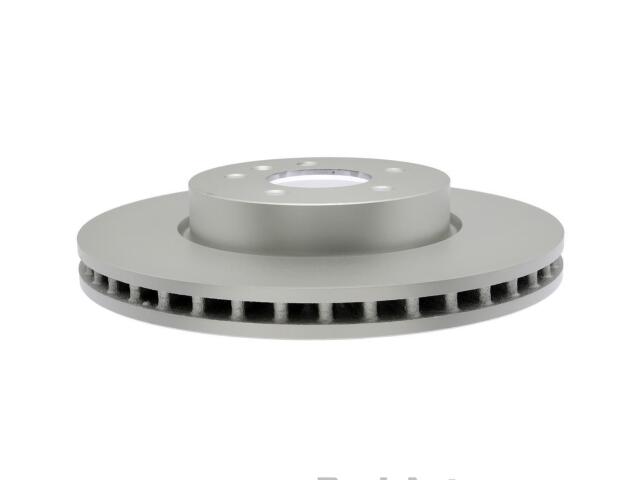

Rotor
ASTRA : 18A81048

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.785
Center Hole Diameter (MM): 70.75
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 1.063
Discard Thickness (MM): 27
Height (IN): 12.9
Inside Diameter (IN): 7.524
Inside Diameter (MM): 191.1
Length (IN): 12.9
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.561
Mounting Bolt Hole Diameter (MM): 14.25
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.644
Outside Diameter (MM): 321.15
Overall Height (IN): 2.398
Overall Height (MM): 60.9
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 23.4
Width (IN): 3.4

适用车型

CADILLAC (2)

ATS (4)

2.0L L4 Turbocharged (7)

2.5L L4 (5)

3.6L V6 (7)

3.6L V6 Turbocharged (4)

CT4 (3)

OE号码

品牌	号码
OE	1935878*
