ASTRA
18A81044

第三方数据ASTRA : 18A81044

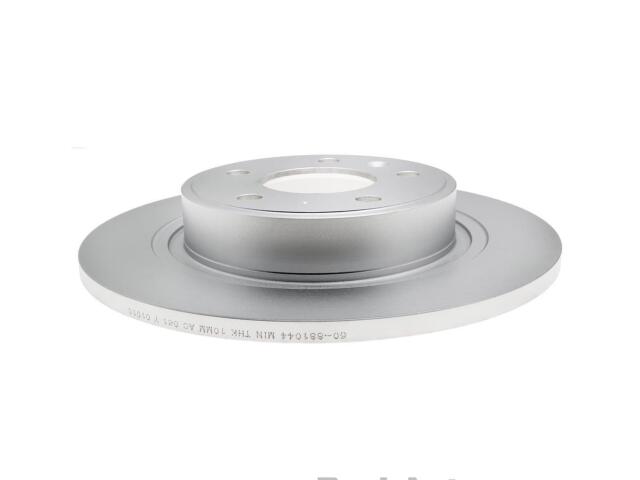

Rotor
ASTRA : 18A81044

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.783
Center Hole Diameter (MM): 70.7
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 0.394
Discard Thickness (MM): 10
Hat Finish: Coated
Height (IN): 2
Inside Diameter (IN): 8.198
Inside Diameter (MM): 208.25
Length (IN): 12
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 4.528
Mounting Bolt Hole Diameter (MM): 115
Nominal Thickness (IN): 0.477
Nominal Thickness (MM): 12.1
Outside Diameter (IN): 11.491
Outside Diameter (MM): 291.9
Overall Height (IN): 1.789
Overall Height (MM): 45.45
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 12
Width (IN): 12.9

适用车型

BUICK (2)

CADILLAC (1)

CHEVROLET (1)

OE号码

品牌	号码
OE	1932640*
