ASTRA
18A81042

第三方数据ASTRA : 18A81042

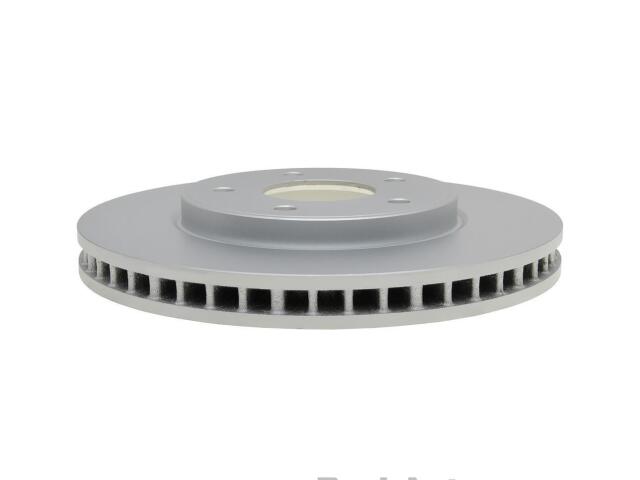

Rotor
ASTRA : 18A81042

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26
Hat Finish: Coated
Height (IN): 2
Inside Diameter (IN): 7.008
Inside Diameter (MM): 178
Length (IN): 12.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.488
Mounting Bolt Hole Circle Diameter (MM): 114
Mounting Bolt Hole Diameter (IN): 4.488
Mounting Bolt Hole Diameter (MM): 114
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28
Outside Diameter (IN): 11.142
Outside Diameter (MM): 283
Overall Height (IN): 1.73
Overall Height (MM): 43.95
Slotted: No
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 4.488
Stud/Lug Hole Diameter (MM): 114
Surface Type: Smooth
Weight (lb): 15.2
Width (IN): 11.6

适用车型

CHEVROLET (1)

OE号码

品牌	号码
OE	1932640*
